Product Description

Is managing your raffle ticket events becoming a chore for your facility? Interested in an easy fool proof way to minimize your efforts and cost while increasing your raffle ticket sales

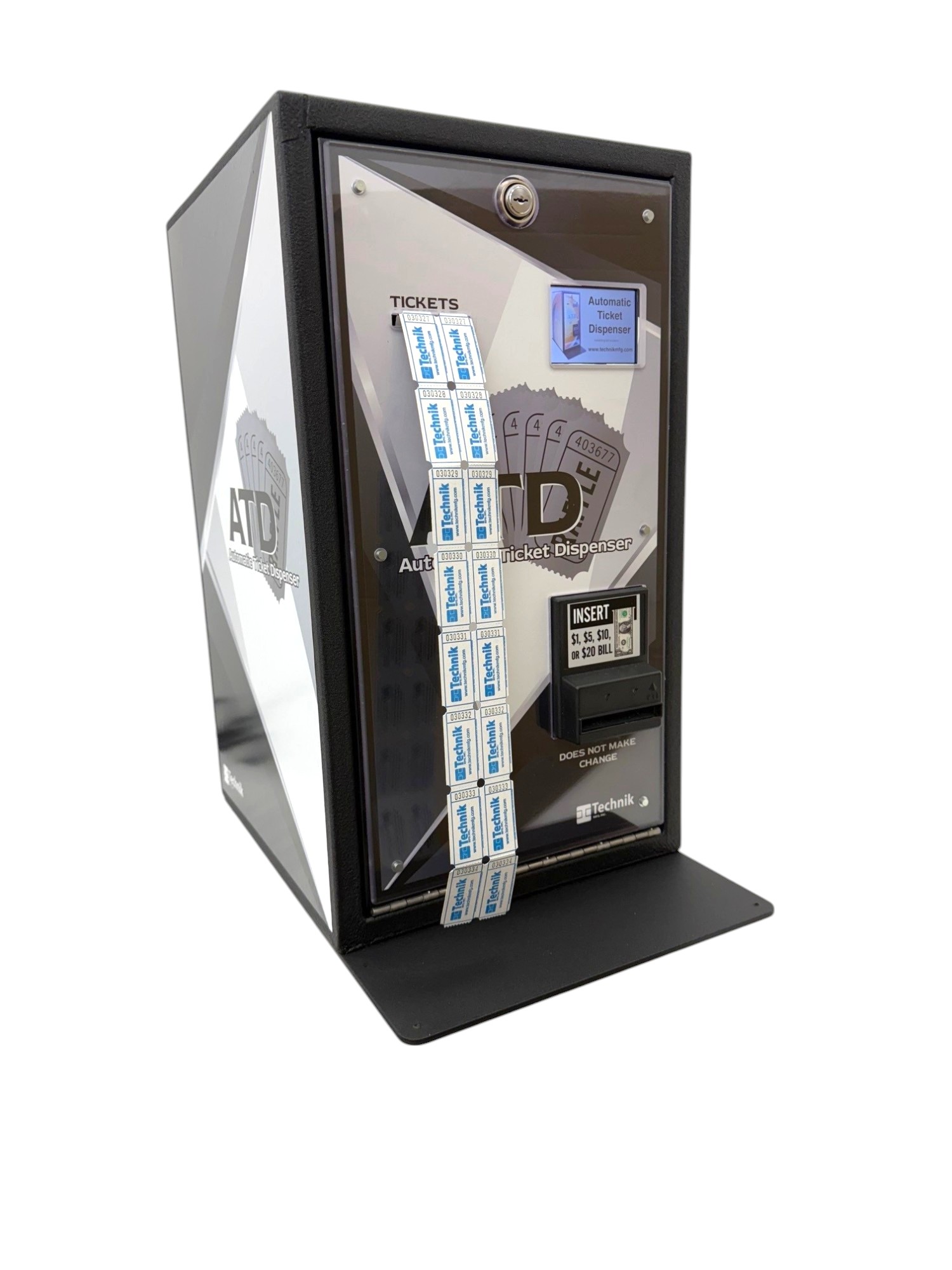

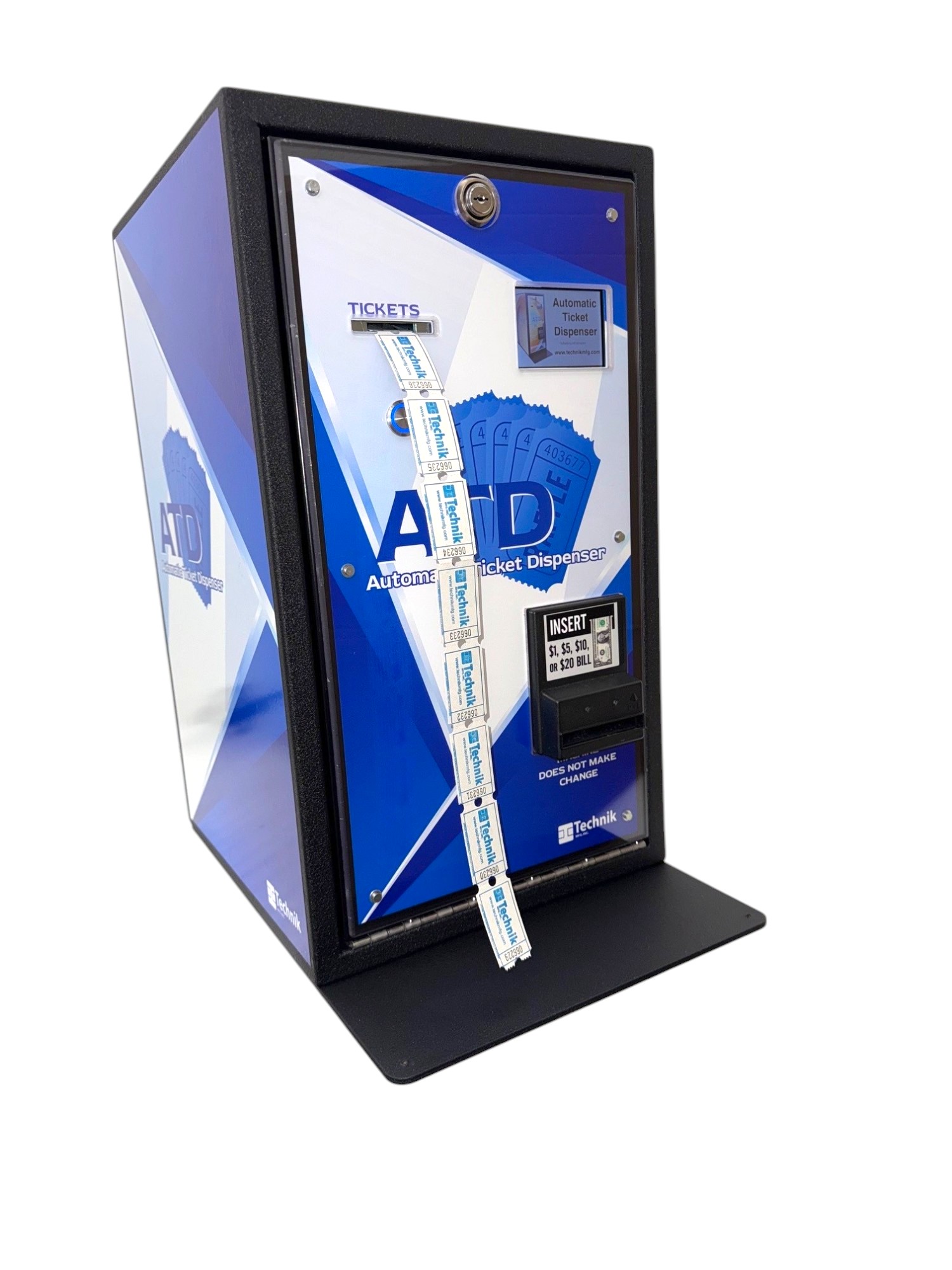

Let us introduce you to the ATD-1 (1 5/32” x 2” ticket) and ATD-2 (2” x 2” ticket) “automatic ticket dispenser” designed as an unlimited ticketing system for progressive jackpot games and other raffle ticket events. These raffle ticket vending machines allow your paid staff and volunteers to spend their time more efficiently while, at the same time, increasing ticket sales and decreasing the variance between tickets sold and cash received. Technik Mfg., with many years of dispensing experience in both vending machines and vending kiosks, has developed a highly reliable ticket dispensing system that boasts a very low failure rate on hundreds of thousands of tickets. The advanced technology of the ATD also keeps accurate accounting records accessible with the touch of a finger. The sleek attention getting style of the ATD draws people to it minimizing hands-on operation while maximizing ticket sales.

  • 16 ga. steel cabinet with durable powder coating.
  • Dimensions – H 21.5” x W 12” x D 15” (18” with base plate).
    H 53.5” x W 24” x D 19” (with base pedestal)
  • Weight – 60 lbs. with base plate.
    90 lbs. with base pedestal.
  • Ticket Capacity – Fan-fold 5,000
    Rolled 2,000
  • Keyed lock 16 ga. steel front door with dual lock rods for high security.
  • Door is hinged down for easy ticket loading and cash removal.
  • 3.5” durable LCD touch screen provides an attract mode, vend mode, set-up mode,
    service mode and sales report mode.
  • Pyramid bill validator that accepts $1, $5, $10 and $20 USD with a 1000 note stacker.
  • Wall, counter-top or floor mountable.
  • Single ticket (1 5/32” x 2”) or double ticket (2” x 2”) compatible.

  • Custom Cabinet Colors.
  • Custom graphics.
  • Can be converted from a single ticket to a double ticket machine and vice versa.
  • Pyramid bill acceptor that accepts $1, $5, $10, $20, $50 and $100 USD.
  • Pyramid, MEI, ICT or JCM bill validators available.
  • Can be configured for cash only, credit card only or cash and credit card acceptance.
  • Audible 126 decibel security alarm with magnetic contacts and/or mercury tilt switch.
  • High secure Medeco or Tubar locks.
  • Printer interface with hand-held thermal printer.
  • Base plate for counter-top model.

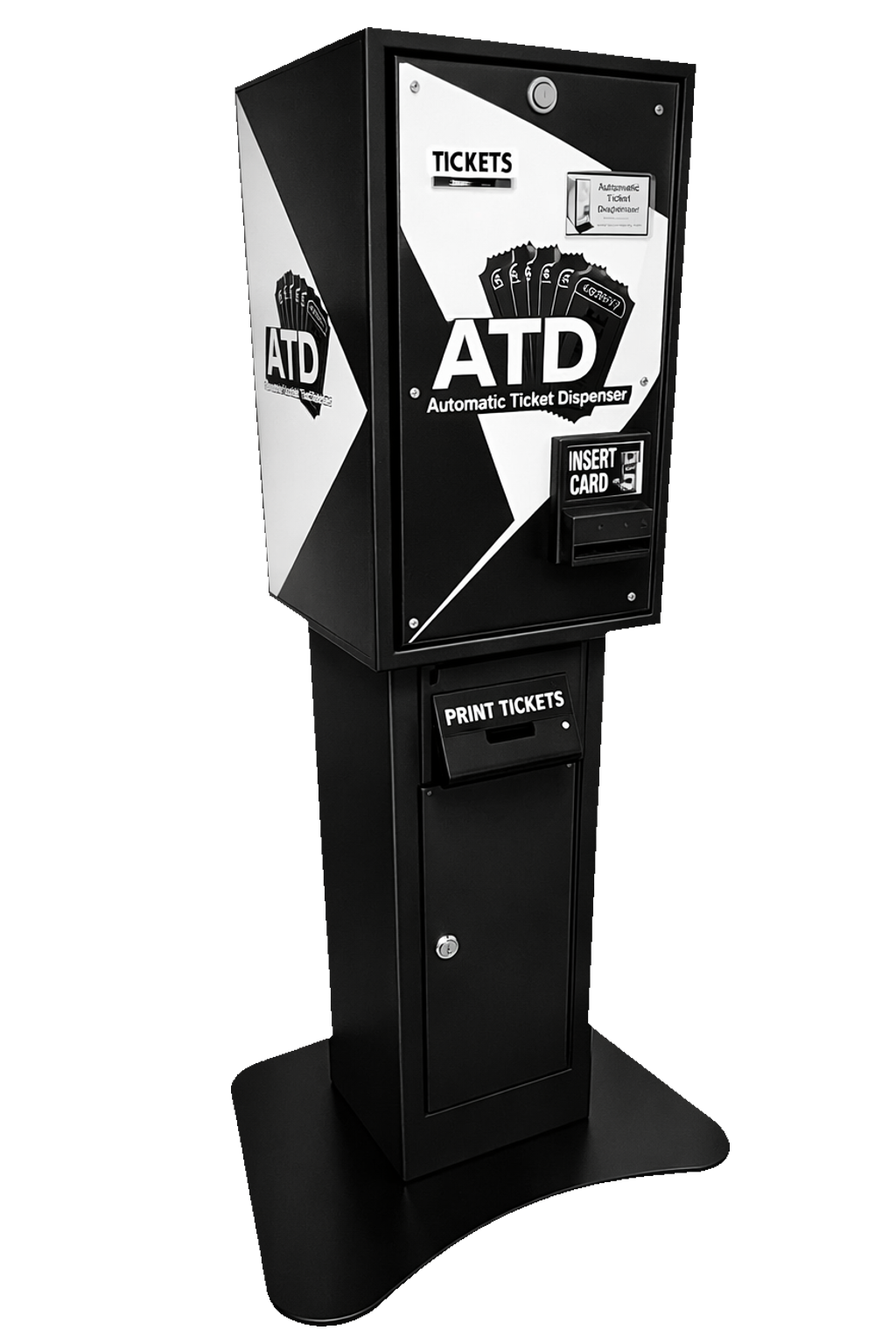

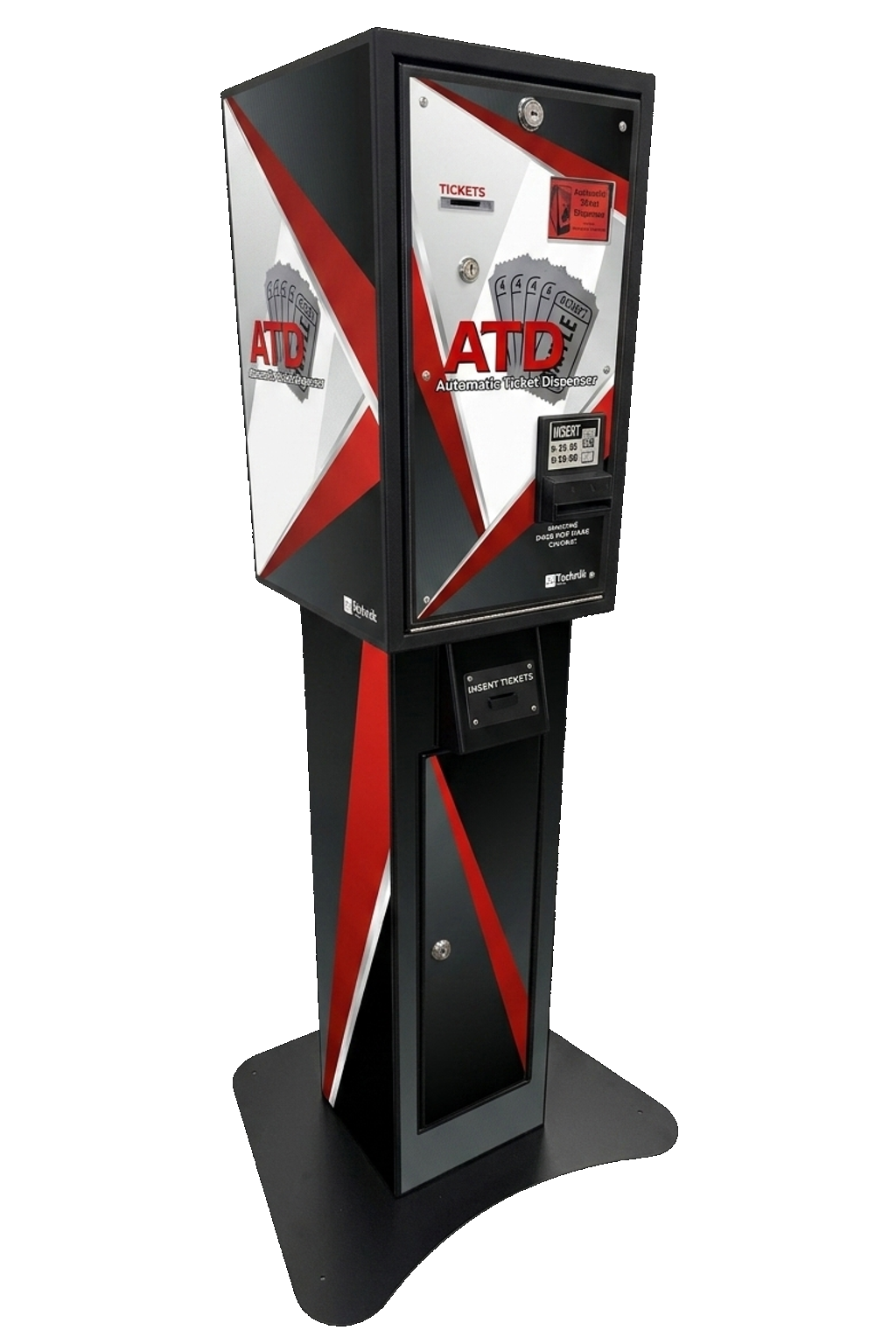

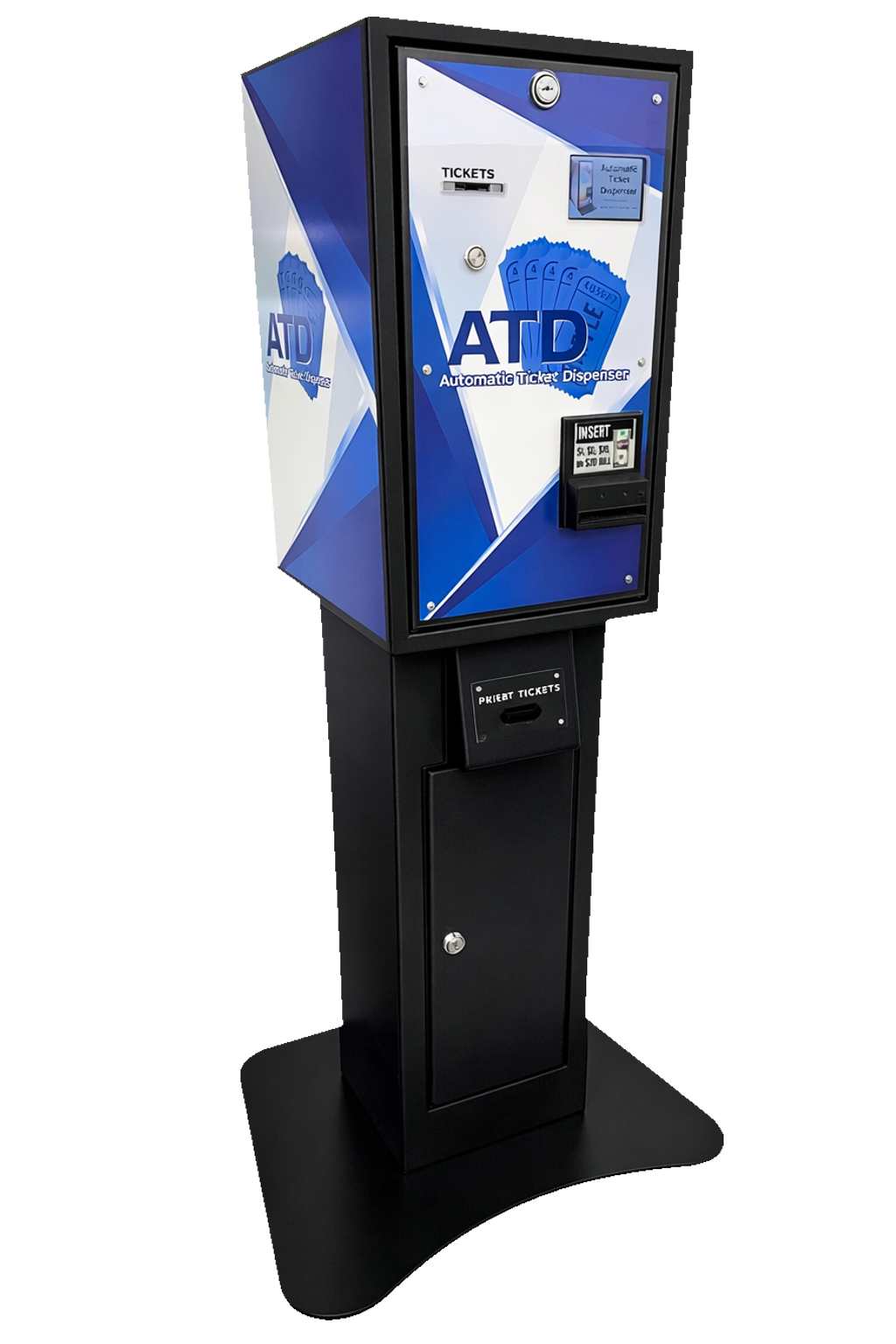

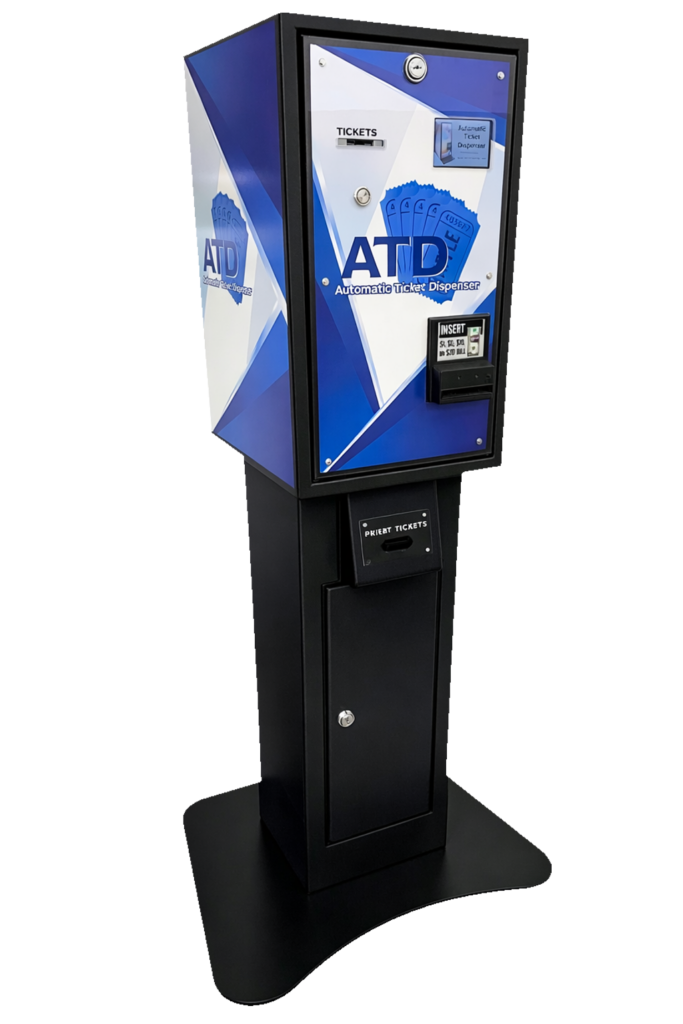

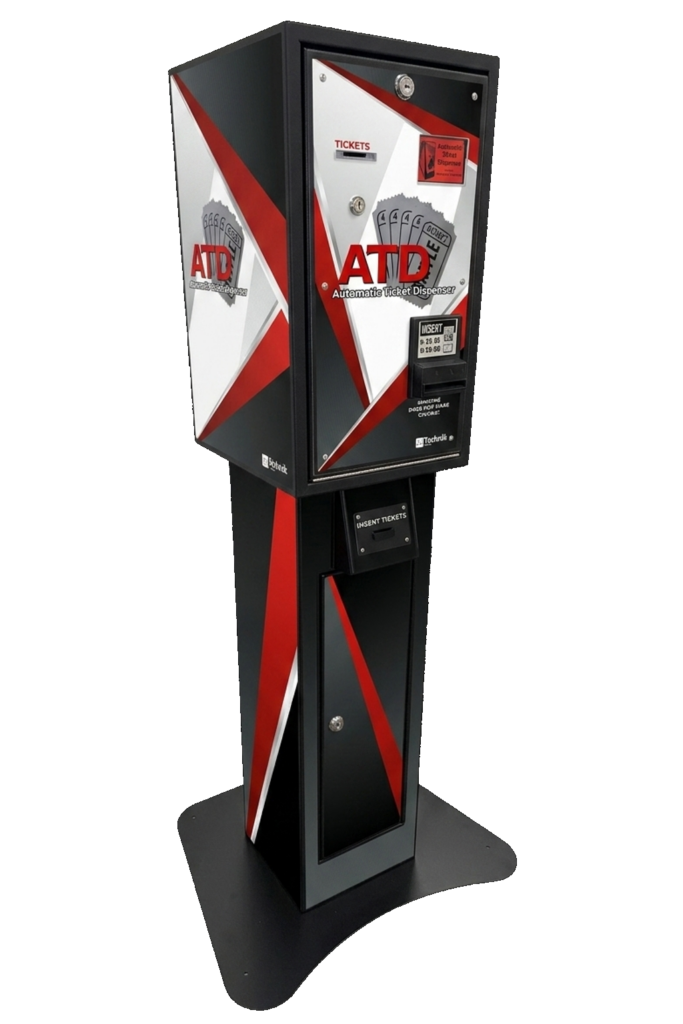

  • Base pedestal for floor model. It can also be used for ticket collection.
  • Ticket drop box.
